15W/m Dotless LED Strip – 3000K / 4000K / 6000K – 5m / 10m Reel – 24V – 10mm – Indoor IP65 - Uno Lighting

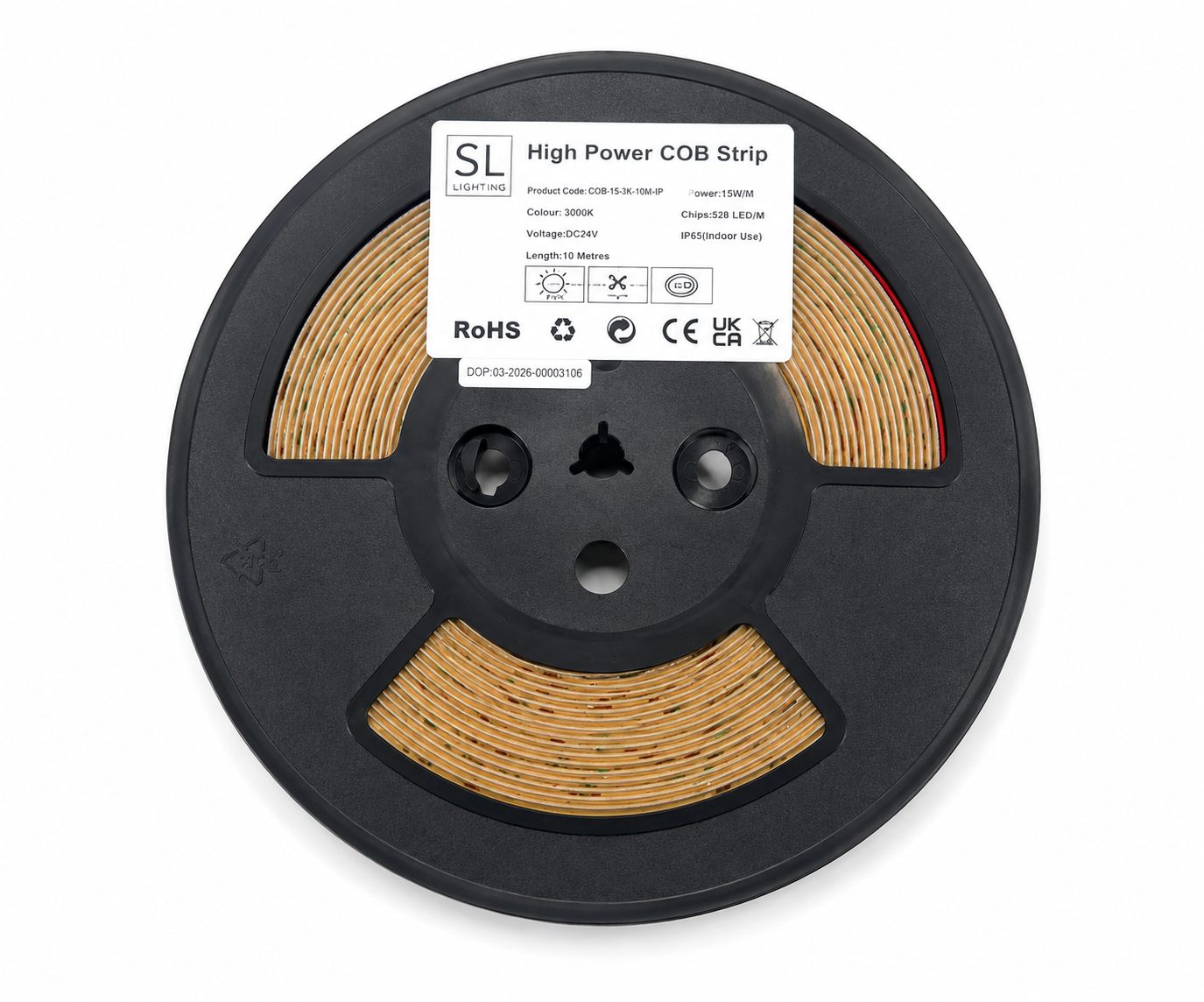

This high-output 15W/m COB Dotless LED Strip delivers bright, smooth and continuous illumination without visible LED dots, making it ideal for modern residential and commercial lighting installations.

Featuring 528 LEDs per metre and a colour rendering index of CRI >90, the strip provides excellent colour quality and a calculated light output of 1,650 lumens per metre, based on a luminous efficacy of 110lm/W.

Available in 3000K Warm White, 4000K Cool White and 6000K Daylight, this strip offers a choice of lighting appearances to suit residential, hospitality, retail and commercial applications.

The 10mm-wide strip features a spray-coated Indoor IP65 finish, providing additional protection without the bulk of a traditional silicone sleeve. Available in 5m and 10m reels, it operates at 24V DC and supports compatible PWM dimming.

Product Specifications

Colour Temperature Guide

High-Output Dotless Illumination

With a power consumption of 15W per metre, this COB LED strip provides bright, continuous linear illumination without the visible LED dots associated with traditional LED strips.

Its high LED density and CRI >90 make it suitable for applications where both light output and colour quality are important.

For a professional finish and effective heat dissipation, we recommend installation within a suitable aluminium LED profile.

Maximum Continuous Run & Power Configuration

The maximum recommended continuous run depends on the power connection configuration.

The 5m reel is supplied with a 2-metre power cable at one end.

The 10m reel is supplied with 2-metre power cables at both ends, allowing power to be supplied from both ends to help reduce voltage drop and maintain consistent brightness.

For a 10m installation, both ends must be powered using an appropriately designed 24V power arrangement.

Driver Requirements

This LED strip operates at 24V DC and must not be connected directly to 230V mains electricity.

A suitable 24V constant-voltage LED driver is required and is sold separately.

We recommend selecting a driver with at least 20% additional capacity above the total LED strip load to provide suitable operating headroom.

For example, a 10m reel consumes 150W. Allowing an additional 20% gives a minimum recommended driver capacity of 180W. A suitable 200W or higher 24V constant-voltage driver would therefore be an appropriate choice.

The strip supports PWM dimming when used with a compatible 24V dimmable driver or controller.

Installation & Indoor IP65 Protection

The Indoor IP65 spray-coated finish provides additional protection for suitable indoor applications, including kitchens and bathrooms.

This product is intended for indoor use only and is not recommended for permanent outdoor installation.

We recommend installing the strip within a suitable aluminium LED profile to provide heat dissipation, protection and a professional finished appearance.

Any cut sections or electrical connections must be appropriately protected for the installation environment. Cutting or soldering may compromise the original protective coating.

Avoid excessive bending, twisting or pressure on the LED strip during installation.

Warranty

This LED strip is supplied with a 2-year standard warranty.

The warranty is extended to 3 years when purchased and installed with a suitable Uno Lighting aluminium profile, helping provide appropriate heat dissipation and protection for long-term performance.

Important Information

• This listing is for the LED strip only, unless otherwise stated.

• LED drivers, controllers, aluminium profiles and other accessories are sold separately.

• The strip requires a suitable 24V constant-voltage LED driver and must never be connected directly to mains electricity.

• We recommend allowing at least 20% additional driver capacity above the total LED strip load.

• The 5m reel is supplied with a 2m cable at one end.

• The 10m reel is supplied with 2m cables at both ends.

• Do not exceed the recommended 5m single-end or 10m both-end maximum continuous run.

• The 10m reel must be powered from both ends.

• This Indoor IP65 strip is not suitable for permanent outdoor installation.

• All LED strips are tested before dispatch.

• Please confirm the voltage, wattage, dimensions, colour temperature and IP rating are suitable for your application before ordering.

• Installation must be carried out by a suitably qualified person.

Electrical Installation Disclaimer

Uno Lighting cannot provide site-specific electrical installation instructions. All mains electrical connections and installation work must be carried out in accordance with applicable electrical regulations by a suitably qualified professional.
