8W/m Dotless Neon LED Strip – 3000K / 4000K – 30m Reel – 24V – 12mm – IP67 - Uno Lighting
This professional-grade 8W/m COB Dotless Neon LED Strip combines smooth, continuous illumination with a low-profile IP67 waterproof construction, making it suitable for both indoor and outdoor architectural lighting applications.
Featuring 378 LEDs per metre with a diffused milky opal cover, the strip produces seamless, dot-free linear illumination without visible LED points or dark spots. With an efficacy of 90lm/W, it delivers approximately 720 lumens per metre with CRI 90 for excellent colour quality.
Available in 3000K Warm White and 4000K Cool White, the strip features a compact 12mm × 4mm top-bend design, making it ideal for architectural details, exterior features, pathways, landscaping and other applications requiring a slim, continuous linear light source.

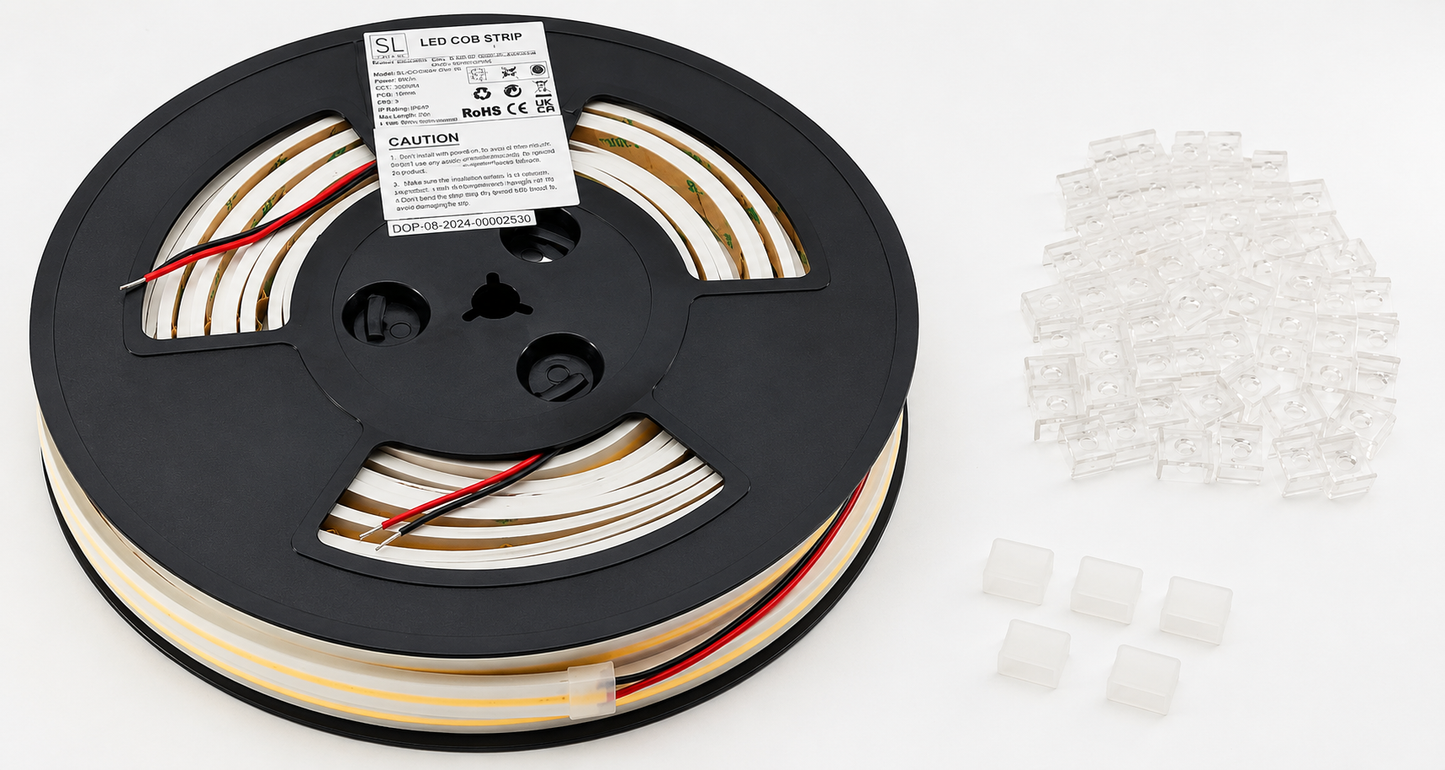

The strip operates at 24V DC, supports compatible PWM dimming and is supplied as a 30-metre reel with 500mm power cables at both ends. For the full 30m continuous run, the strip must be powered from both ends.
Product Specifications
| Specification |
Details |
| Input Voltage |
24V DC |
| Power |
8W/m |
| Light Output |
720lm/m (calculated from 90lm/W) |
| CRI |
90 |
| LED Type |
COB Dotless Neon |
| LED Density |
378 LEDs/m |
| Dimensions |
12mm W × 4mm H |
| Bending Direction |
Top Bend |
| Cutpoint |
56mm |
| IP Rating |
IP67 |
| Colour Temperatures |
3000K / 4000K |
| Dimmable |
Yes – compatible 24V PWM dimming |
| Reel Length |
30m |
| Maximum Continuous Run |
15m single-end / 30m powered from both ends |
| Power Cables |
500mm cables at both ends |
| Lighting Effect |
Seamless, diffused and dot-free linear illumination |
| Application |
Indoor & outdoor architectural lighting |
Colour Temperature Guide
| Colour Temperature |
Appearance |
Recommended Use |
| 3000K |
Warm White |
Residential exteriors, landscaping, pathways, hospitality and architectural features |
| 4000K |
Cool White |
Contemporary exteriors, pathways, commercial spaces and architectural lighting |
Low-Profile Dotless Neon Illumination
The combination of high-density COB technology and the diffused milky opal cover produces a smooth and continuous lighting effect without visible individual LED dots.
At only 12mm wide × 4mm high, the low-profile Neon construction provides a clean linear lighting effect while remaining suitable for applications where installation space is limited.
The strip is designed for top-bend applications, so the bending direction must be observed during installation. Avoid twisting, lateral bending or bending beyond the product's permitted radius.
Ultra Long Run Performance
This 24V Neon strip is designed for longer continuous installations while helping maintain consistent performance across the run.
| Power Configuration |
Maximum Continuous Run |
| Powered from one end |
Up to 15m |
| Powered from both ends |
Up to 30m |
The 30m reel is supplied with 500mm power cables at both ends.
For the full 30m continuous run, power must be supplied from both ends. This helps minimise voltage drop and maintain consistent brightness across the complete installation.
A 30m reel should not be operated from only one end, as this exceeds the recommended 15m single-end maximum run.
Driver Requirements
This LED strip operates at 24V DC and must never be connected directly to 230V mains electricity.
A suitable 24V constant-voltage LED driver is required and is sold separately.
A full 30m reel has a total LED strip load of:
30m × 8W/m = 240W
We recommend allowing at least a 20% driver capacity buffer above the calculated LED strip load.
| Reel Length |
LED Strip Load |
Minimum Recommended Driver Capacity |
| 30m |
240W |
288W |
A suitable 300W or higher 24V constant-voltage driver would therefore normally provide the required capacity for one full 30m reel.
For the full 30m installation, the driver output must be appropriately arranged to power the strip from both ends.
The strip supports PWM dimming when used with a compatible 24V dimmable driver or controller.
IP67 Waterproof Protection
The Neon strip is supplied with an IP67 waterproof construction and is suitable for appropriate indoor and outdoor applications.
The factory 30m reel is supplied sealed at both ends.
It is particularly important to note that cutting the strip will break the factory waterproof seal at the cut end.
If the strip is cut during installation, the newly exposed end must be correctly resealed using the appropriate end cap and suitable silicone sealant to restore and maintain the waterproof protection.
Failure to correctly seal a cut end may allow moisture or water to enter the strip and can result in product failure.
Do not assume a cut section remains IP67 simply because the original reel was supplied as IP67. Waterproof protection depends on all cut ends and connections being correctly resealed.
Installation Guidance
Handle the Neon strip carefully during installation. Excessive twisting, sharp bending, stretching or physical pressure can damage the internal circuit or waterproof construction.
The strip is designed as a top-bend Neon, so it should only be bent in the intended direction and within an appropriate bending radius.
We recommend using a suitable mounting profile or fixing system to support the strip and achieve a professional installation.
For outdoor installations, particular attention must be given to cut ends, cable entry points, connections and joints to ensure they are appropriately sealed against moisture ingress.
Warranty
This LED strip is supplied with a 2-year standard warranty.
The warranty is extended to 3 years when purchased and installed with a suitable Uno Lighting aluminium profile, helping provide appropriate support, protection and long-term performance.
Physical damage caused by incorrect bending, twisting, cutting, installation or failure to correctly waterproof cut sections is not considered a product manufacturing defect.
Important Information
-
This listing is for the 30m LED Neon strip only, unless otherwise stated.
-
LED driver, controller, mounting profile and other accessories are sold separately.
-
A suitable 24V constant-voltage LED driver is required.
-
Never connect the LED strip directly to 230V mains electricity.
-
We recommend allowing at least 20% additional driver capacity above the calculated LED strip load.
-
The 30m reel has a total strip load of 240W, requiring a minimum calculated driver capacity of 288W after the 20% allowance.
-
The strip is supplied with 500mm power cables at both ends.
-
The full 30m reel must be powered from both ends.
-
Maximum recommended continuous run is 15m powered from one end / 30m powered from both ends.
-
The strip has a 56mm cutting interval.
-
The factory reel is supplied sealed at both ends.
-
If the strip is cut, every newly exposed end must be correctly resealed using the appropriate end cap and suitable silicone sealant to maintain waterproof protection.
-
The strip is designed for top-bend applications; avoid twisting or bending it in the incorrect direction.
-
All LED strips are tested before dispatch.
-
Please confirm the voltage, wattage, dimensions, colour temperature, IP rating and installation requirements are suitable for your application before ordering.
-
Installation must be carried out by a suitably qualified person.
Electrical Installation Disclaimer
Uno Lighting cannot provide site-specific electrical installation instructions. All mains electrical connections and installation work must be carried out in accordance with applicable electrical regulations by a suitably qualified professional.
