PLEASE NOTE THIS BULKHEAD IS MODULAR, AND IT SUPPLIED IN MODULAR FORM, THIS MEANS THE BULKHEAD BODY, LAMP, BEZEL, SENSOR,EMERGENCY PACK ARE SUPPLIED INDIVIDUALLY AND NEED TO BE FITTED TOGETHER IN ORDER TO OPERATE. This fittings complies with all current regulations and meets circular economy replaceable parts guidelines.
Introducing the incredibly adaptable, plug-and-play, modular Microwave Sensor Emergency Tri-Power LED IP65 Bulkhead, available in 12W, 18W, and 24W with Colour Changing CCT.
Its modular design allows for the easy replacement of internal components—such as the emergency module, sensor, and LED light module—simplifying maintenance, extending the product's overall lifespan, and making it a highly environmentally friendly solution.
IP65 IK10 Bulkhead CCT Color Changing with 3 Hours Emergency and Sensor Adjustable Function includes Adjustable Detection area, Hold-Time, Daylight Threshold for specific needs.Â
Size: 330mm Diameter with a low profile 70mm
- Power Switchable 12W,18W,24W
- IP rating - IP65
- IK10 rating
- Beam 120
- CLASS II
- Lumens – 12W - 1200lm, 18w -1800lm, 24W-2400lm
- Four conduit entry knockouts on each side and two rear entry points/knock-outs
- Bezel's have knockouts to allow for installation with conduit
- 320mm diameter with a low profile depth 70mm
- TPA Rated and UV Stabilised
- White bezel
- Available in Adjustable Microwave sensor, Emergency, Combined - Adjustable Microwave Sensor & emergency version
- CCT Switchable – 3000K, 4000K, 6000K
- Ideal wall / ceiling mountable luminaire for internal & external

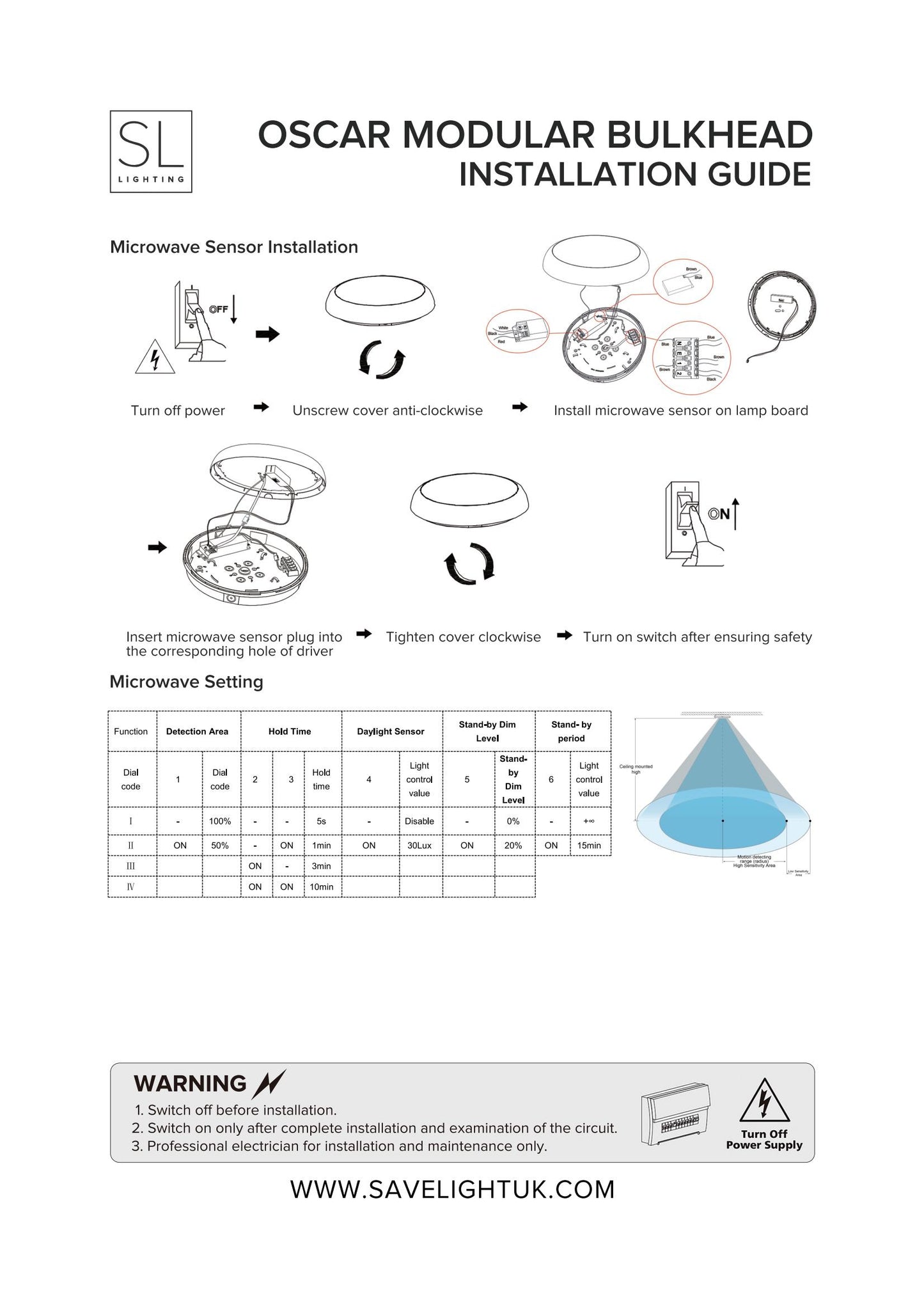

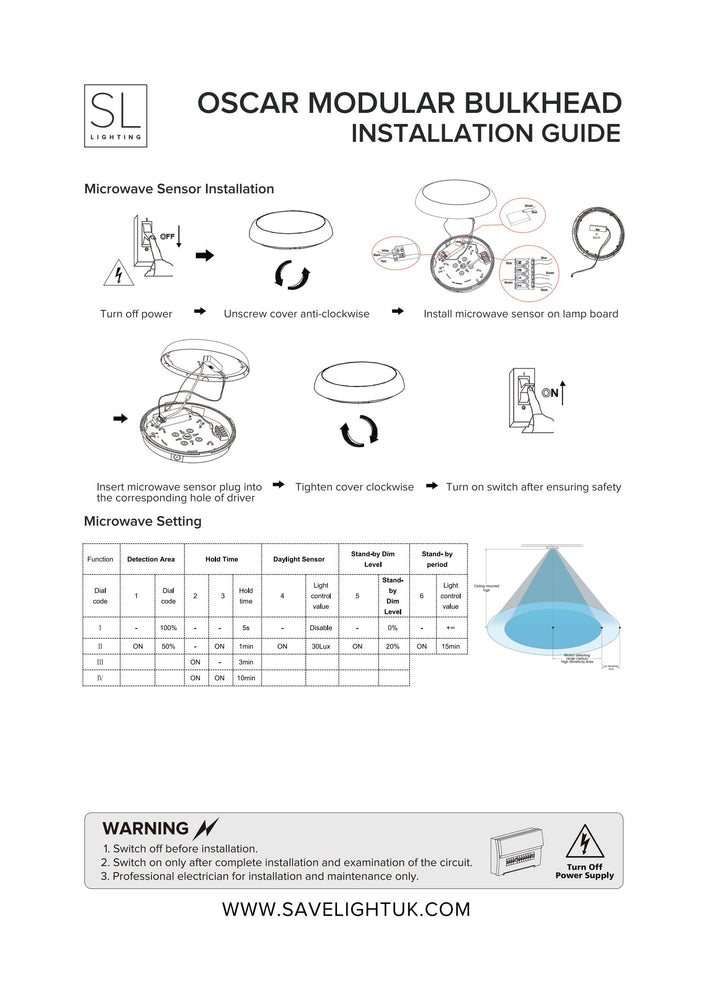

- Microwave Sensor can adjust the detection area, hold time, and daylight detection
- 3 Hours Emergency Battery Back Up
- 3 year warranty (1 year battery warranty – Emergency or Combined Version – Sensory & Emergency
- Lumen efficacy 100lm/W.
- Besa Box mountable. Four Knockout entries on each side (two knockout entries from the back), Four knockout on the bezels.

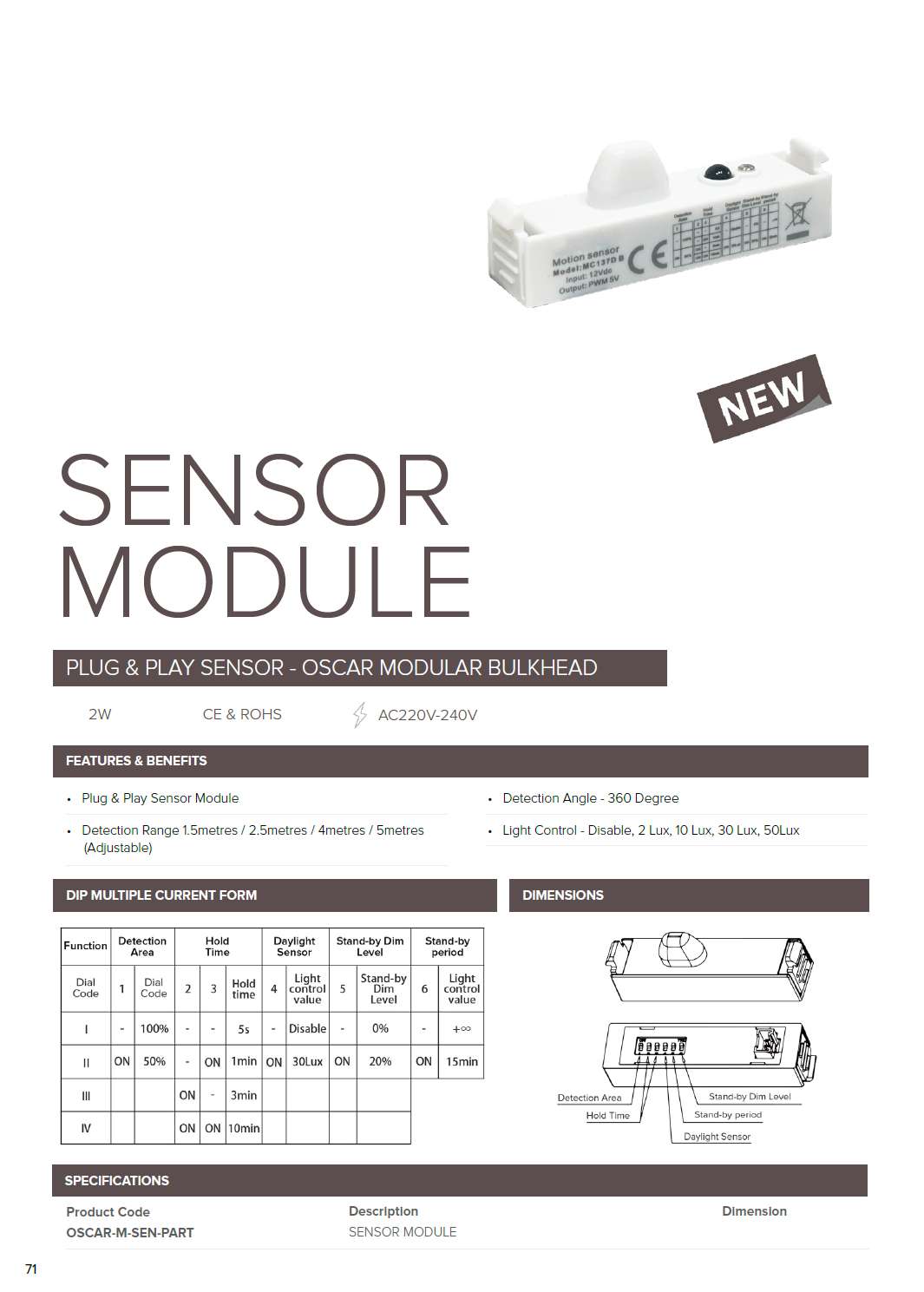

- Plug and Play Modules- Emergency Module, Microwave/ Photocell Module (Adjustable Dip Switches).Â
Complete with a fast-fit hinged gear tray, a push fit connector and an LED driver, makes installation easy. Available in Microwave, Emergency, and Microwave Emergency.
