This bulkhead is modular. The body, LED module, bezel, and emergency pack are supplied separately and must be assembled for the fitting to operate. It complies with all current regulations and meets circular-economy replaceable-parts guidelines.
This IP65 IK10 Tri-Power Modular LED Bulkhead is built for flexibility, easy maintenance, and long-term sustainability. Its modular construction allows individual components to be replaced without changing the full unit.
Available in 12W / 18W / 24W with CCT switching (3000K / 4000K / 6000K), it delivers reliable indoor or outdoor performance. Optional plug-and-play modulesincluding Emergency, Microwave Sensor, or Combined Sensor + Emergencymake it suitable for commercial, residential, and industrial applications.

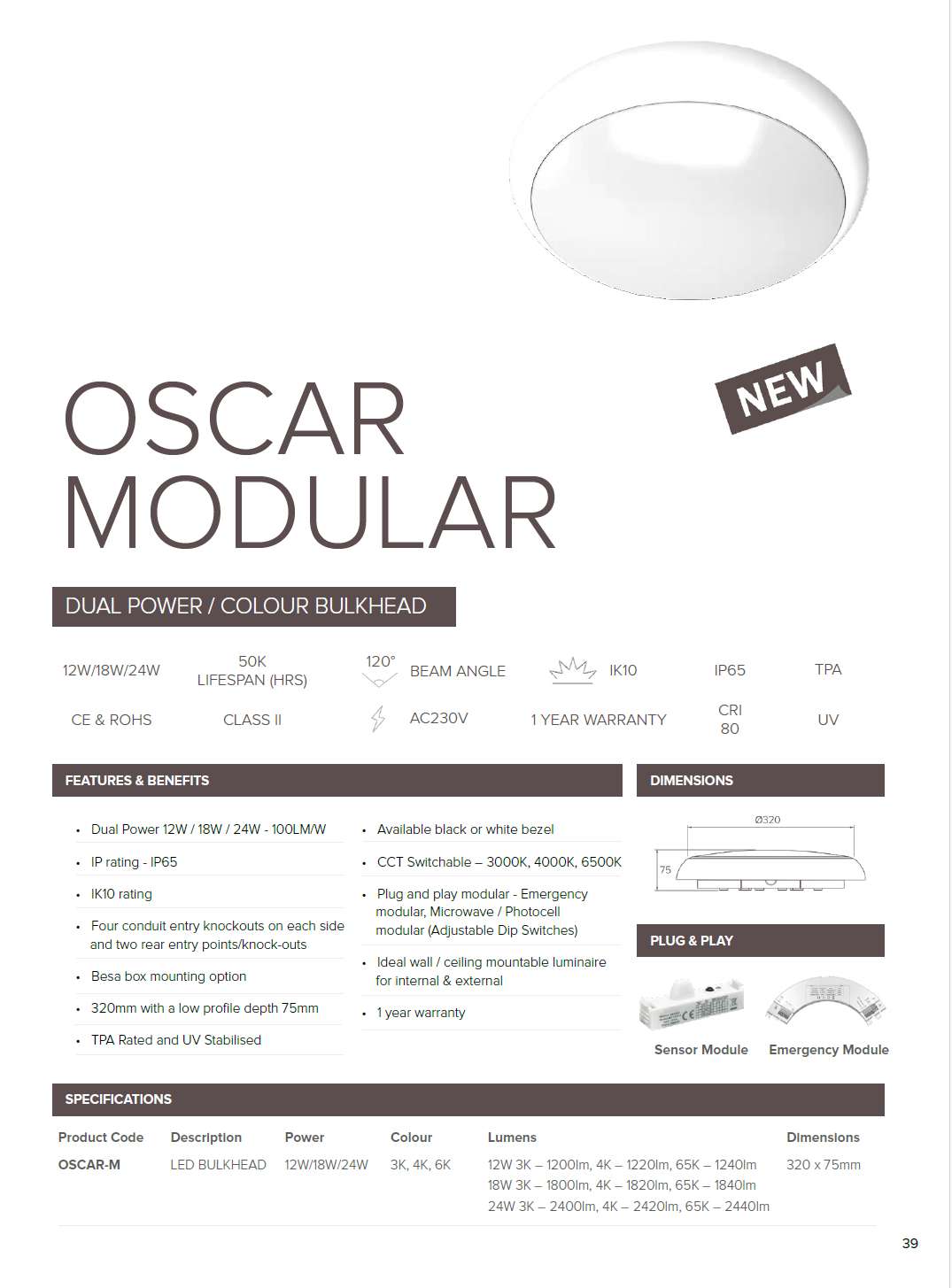

Product Specification
IP65 IK10 Bulkhead with 3 Hours Emergency.
Type: Modular LED Bulkhead - Tri-Power & CCT Switchable
Wattage: 12W / 18W / 24W (switchable). 2W in Emergency Mode
Lumen Output: 1200 lm / 1800 lm / 2400 lm
Colour Temperature: 3000K / 4000K / 6000K
Beam Angle: 120°
Efficacy: 100 lm/W
CRI: (not specified, assumed >80)
Electrical
Class: Class II

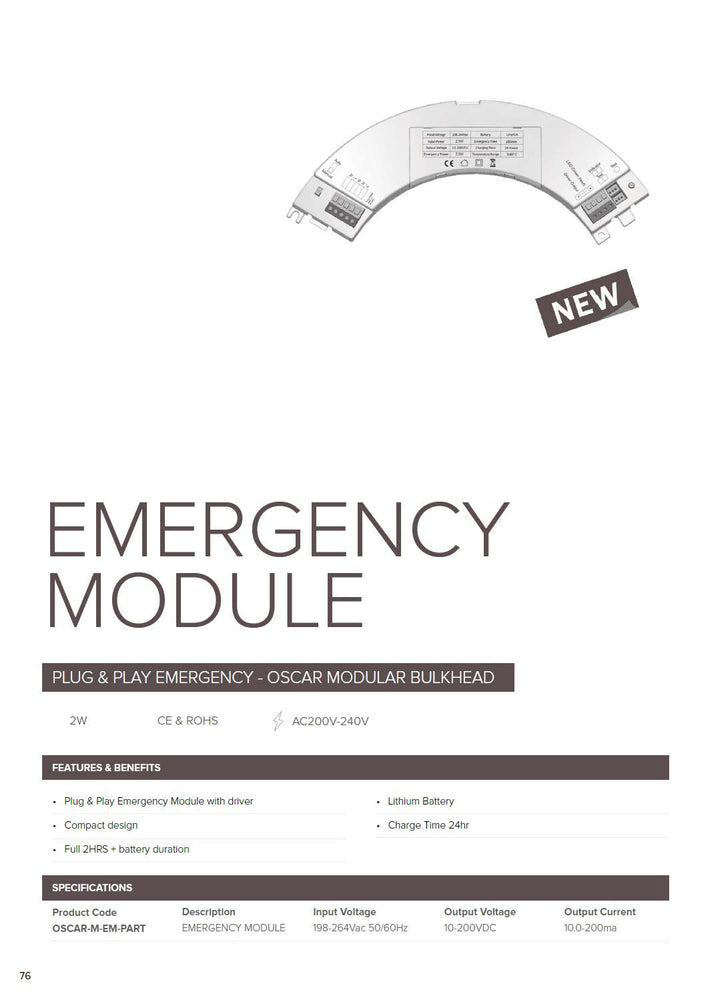

Emergency Duration (optional): 3 hours
Input Voltage: Standard mains (220-240V AC)
Construction

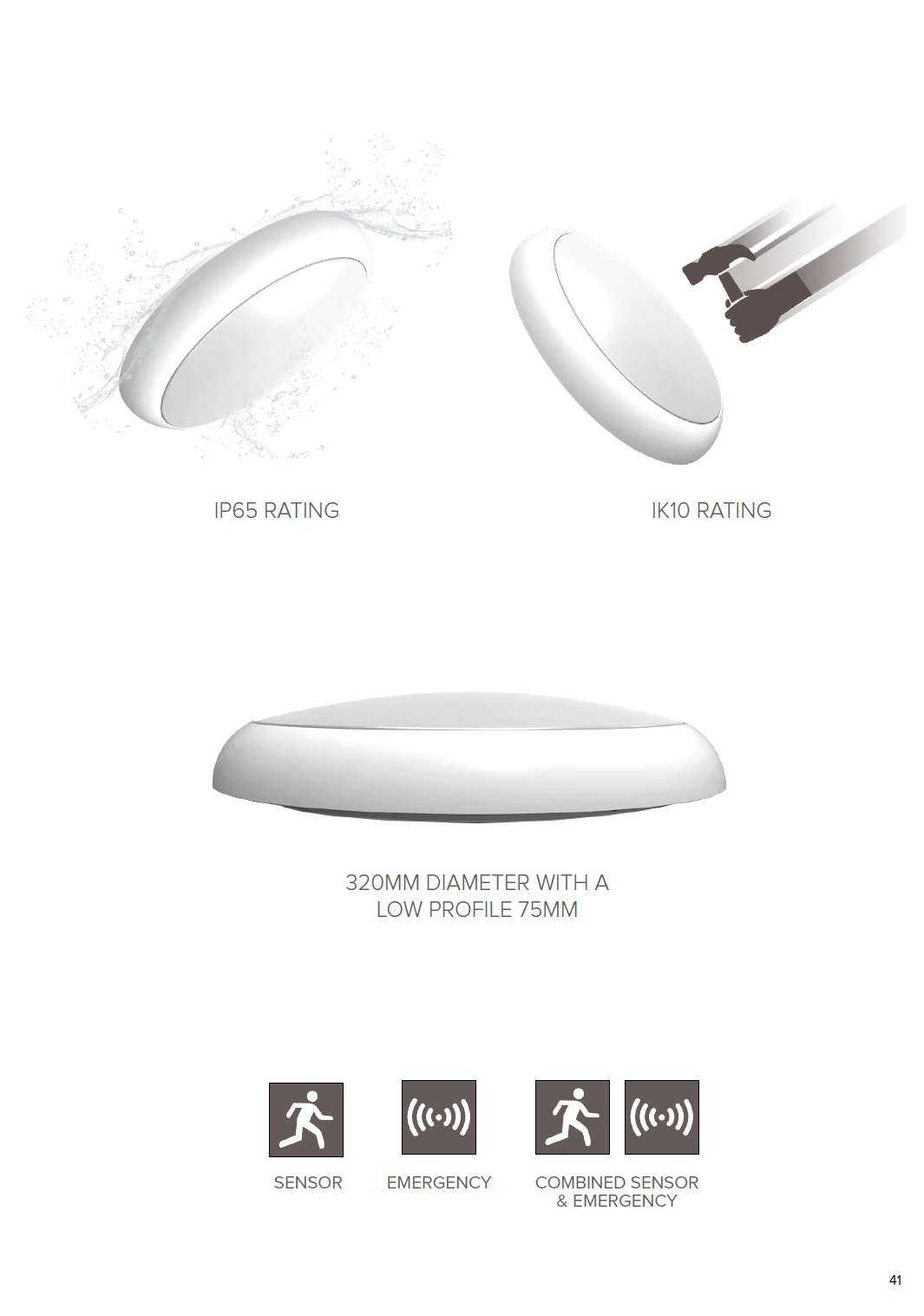

IP Rating: IP65
IK Rating: IK10
Housing: UV stabilised, TPA-rated
Bezel Colour: White
Mounting: Wall or ceiling, internal or external

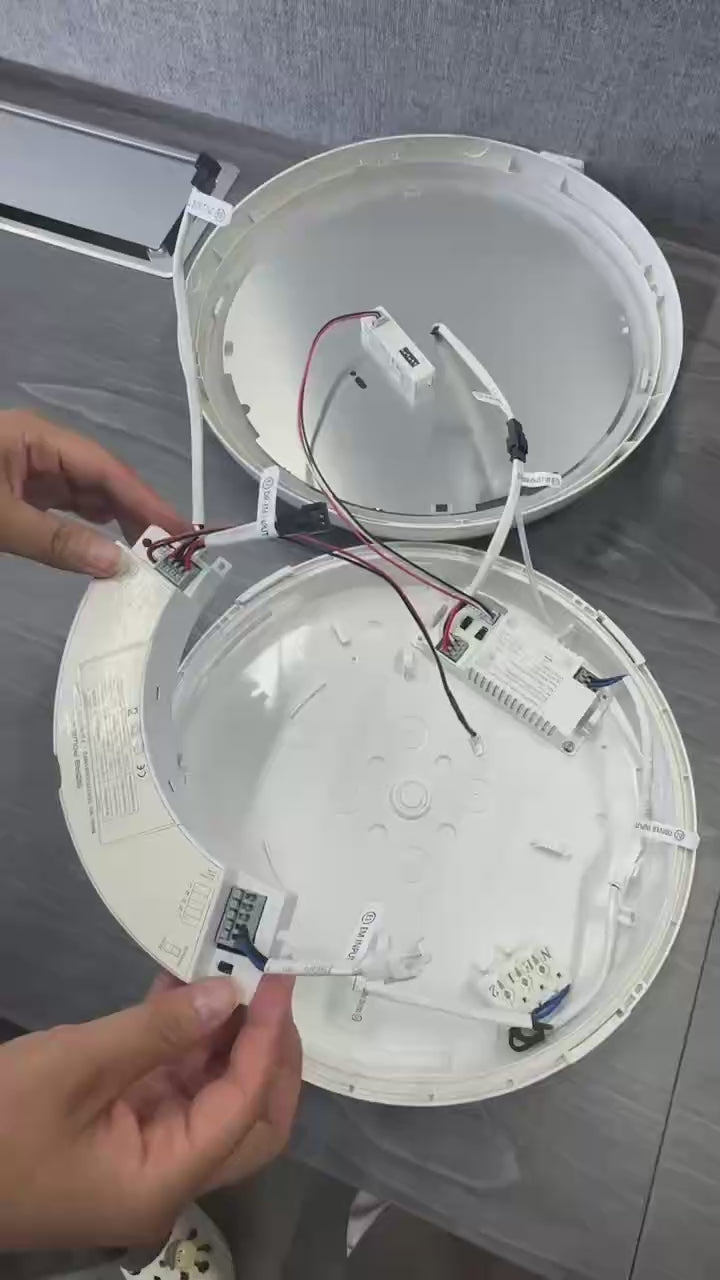

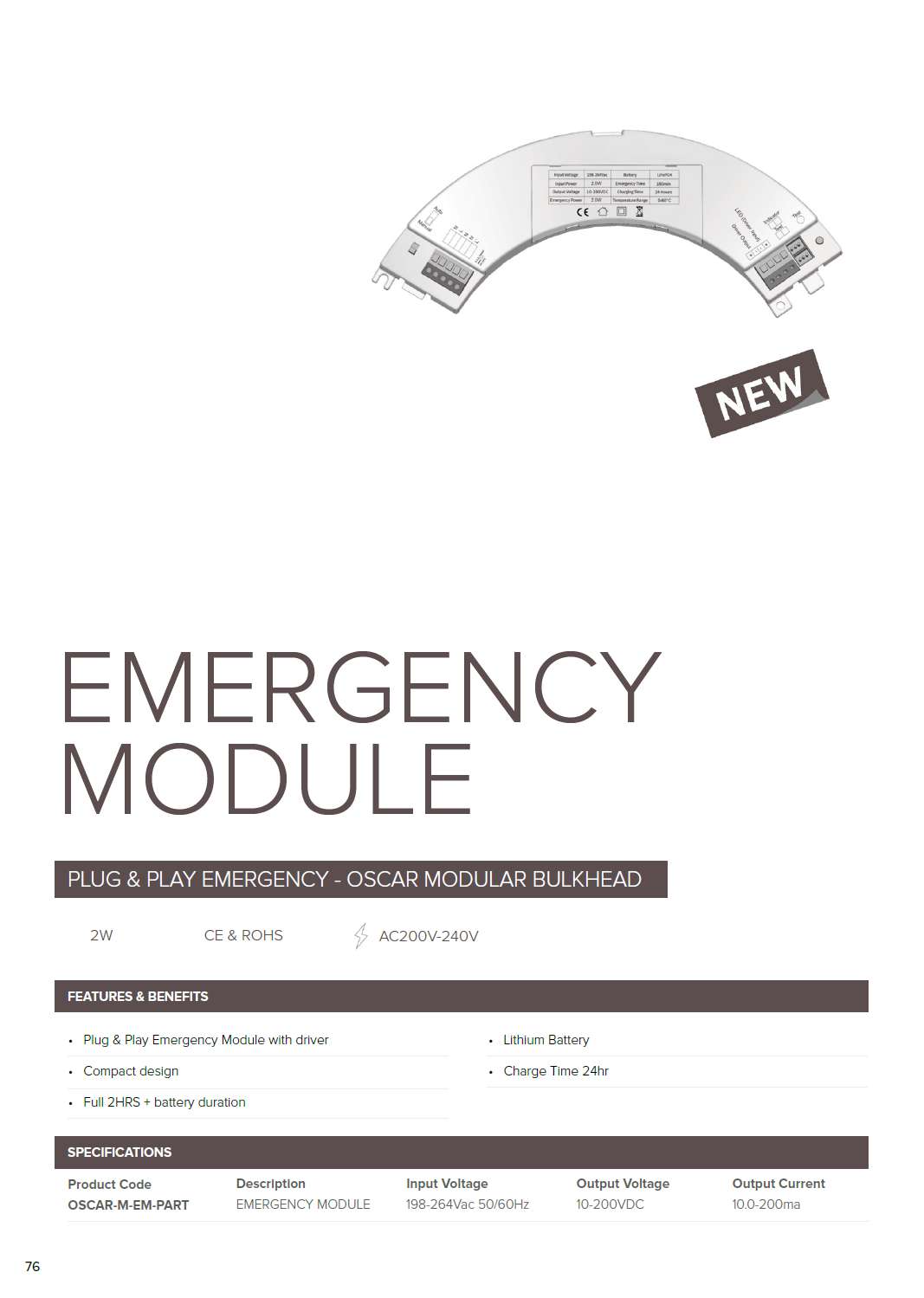

Modular Components: LED module, bezel, emergency pack
Gear Tray: Fast-fit hinged with plug-and-play connections
Dimensions
Diameter: 320-330 mm
Depth: 75 mm

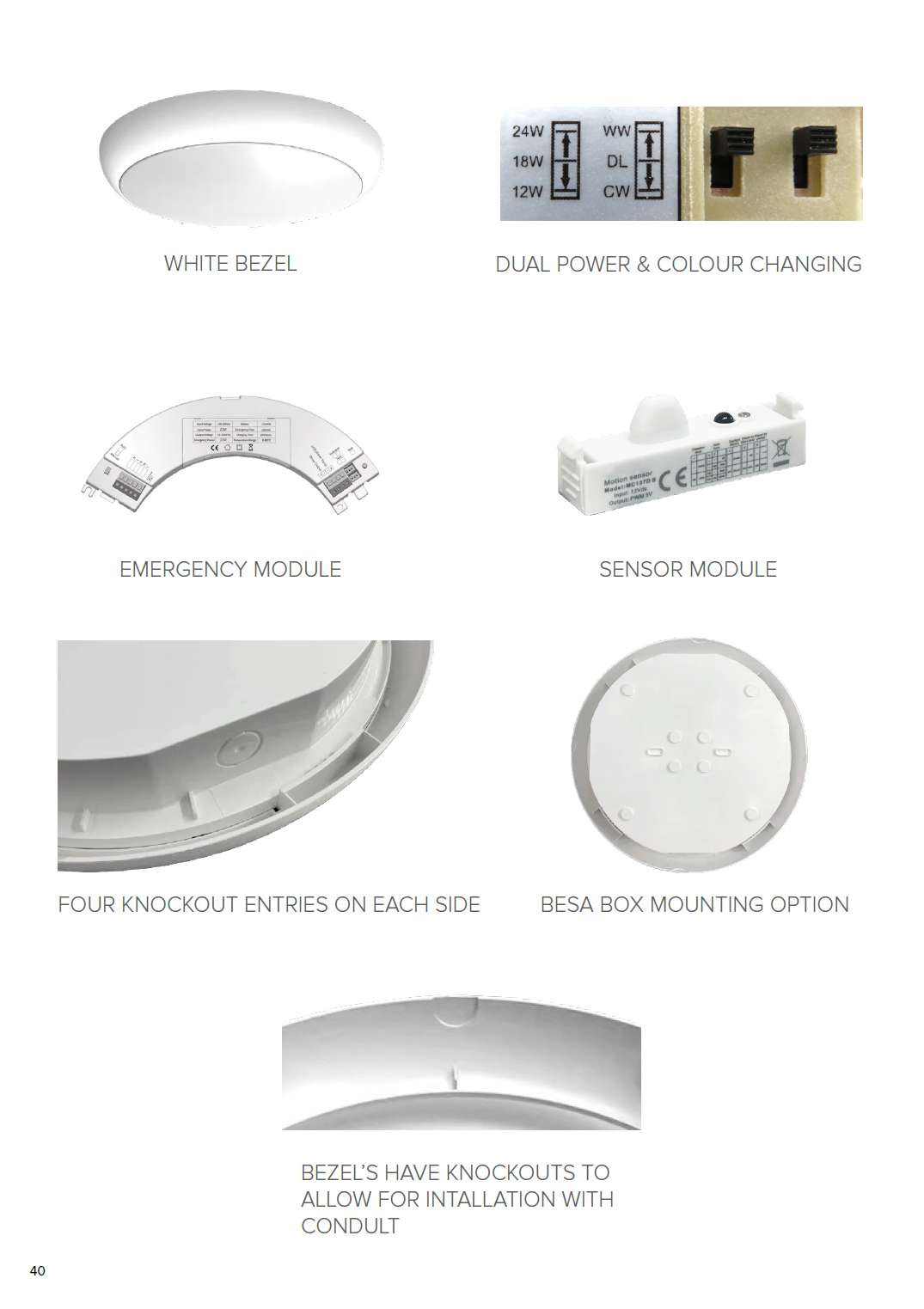

Four conduit knockouts each side
Two rear knockouts
Additional knockouts on bezel for conduit entry
BESA box compatible
Warranty
3-year product warranty
1-year battery warranty (Emergency & Combined versions)

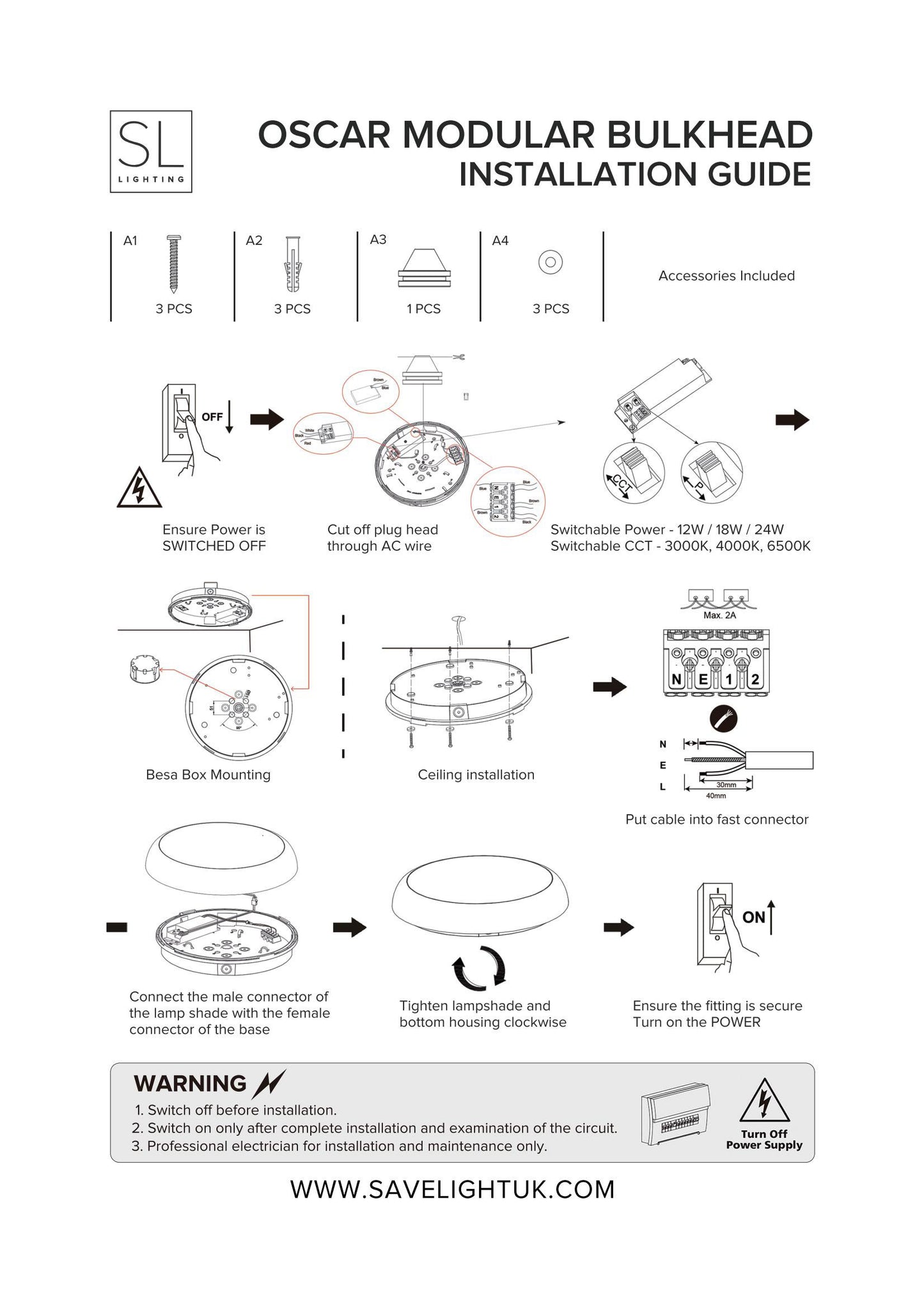

Installation & Usage Note
This bulkhead is supplied in modular form. The body, LED module, bezel and emergency pack are supplied separately and must be fitted together for correct operation.
Installation should be carried out by a qualified electrician in accordance with local wiring regulations.
Ensure all modulesincluding the LED gear tray, driver, emergency pack are securely connected using the plug-and-play connectors.

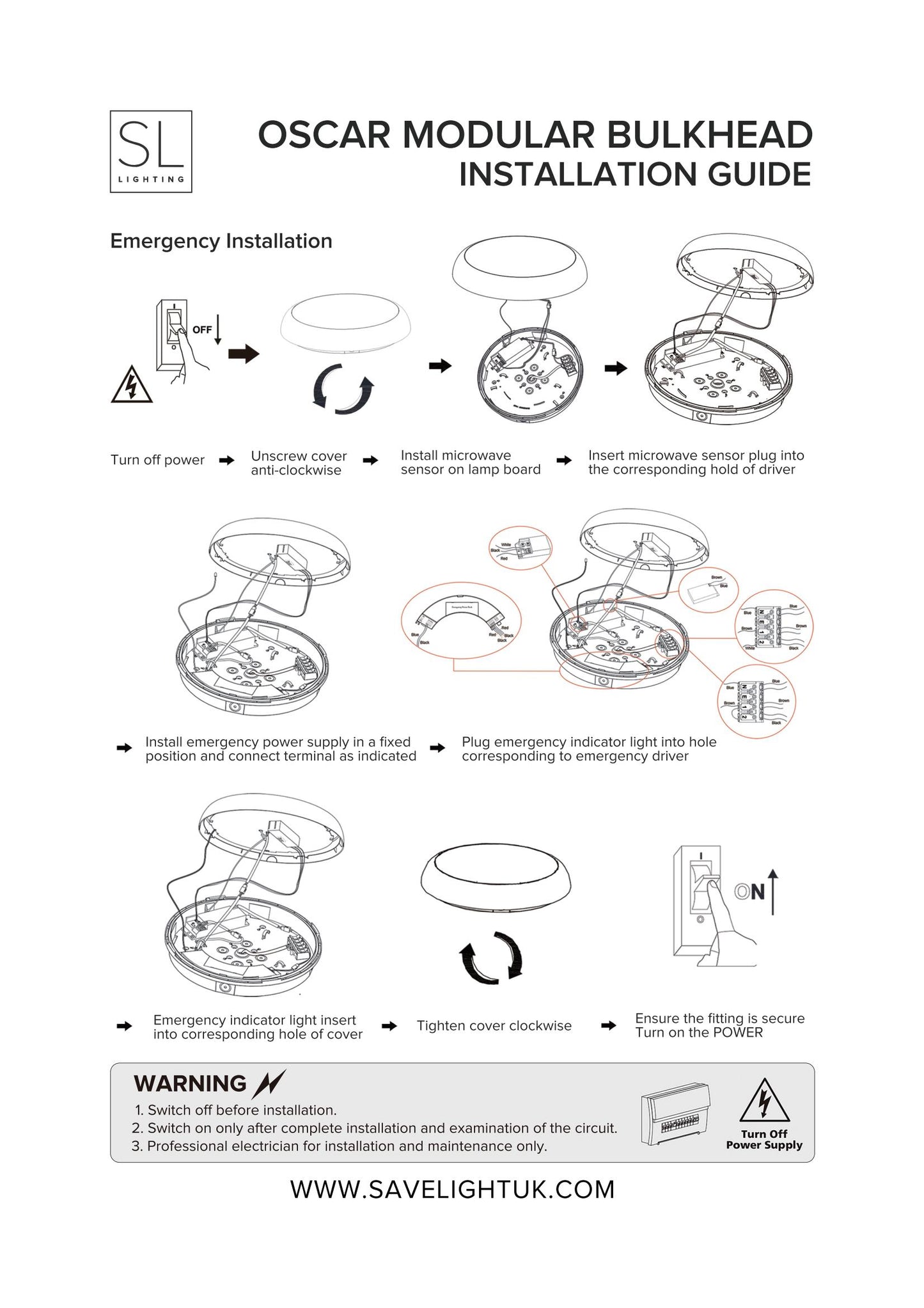

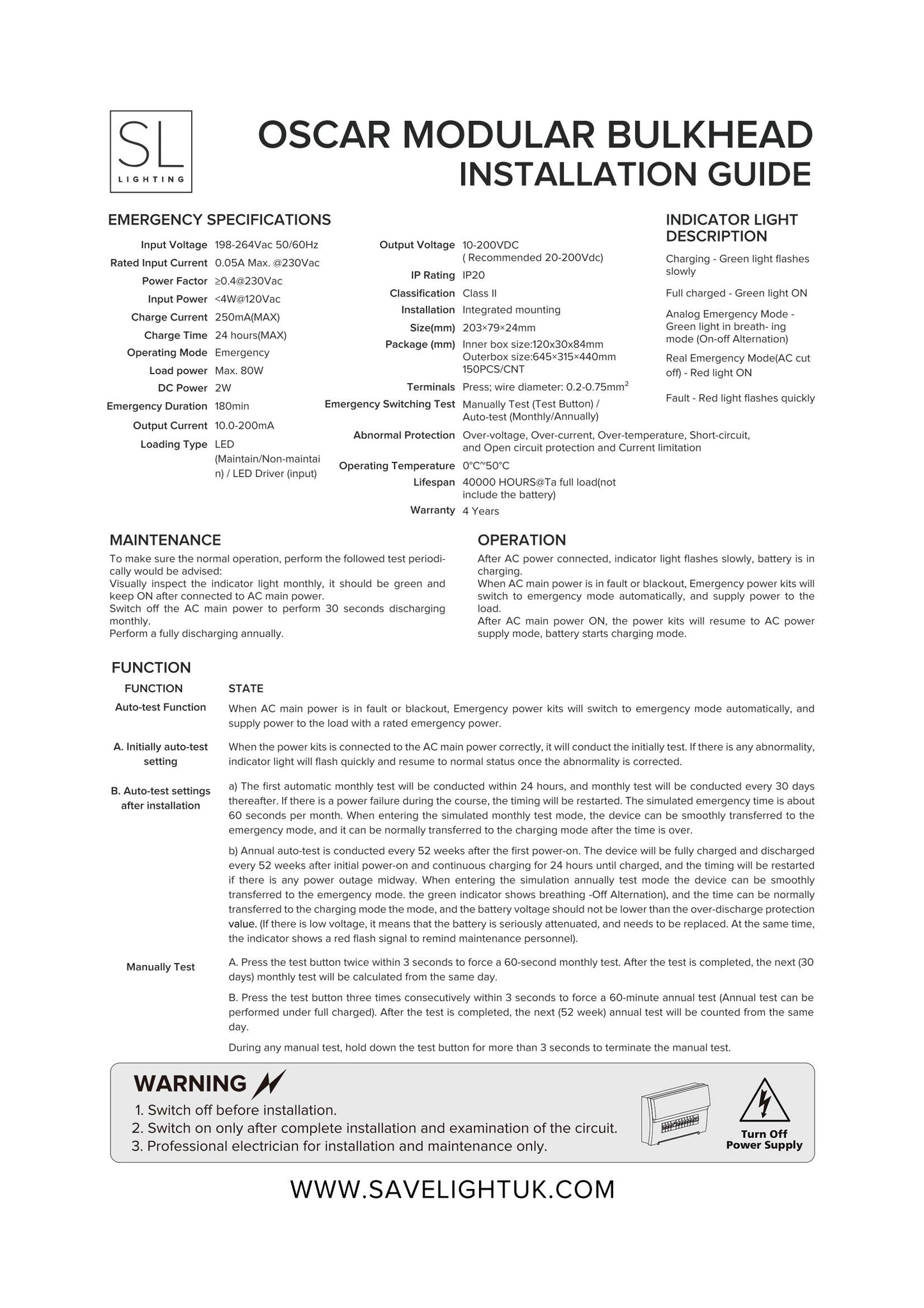

For Emergency models, allow the battery to charge for 24 hours before testing.
Suitable for both wall and ceiling mounting, internally or externally (IP65).
Ensure all conduit knockouts and gaskets are correctly sealed to maintain ingress protection.
